HARTING Han MPC 30/60: Lightweight and High-Performance Connectors for Mobile Applications

[Semih Asil]

### High Performance in Mobile Systems with HARTING Han MPC 30/60 Connectors

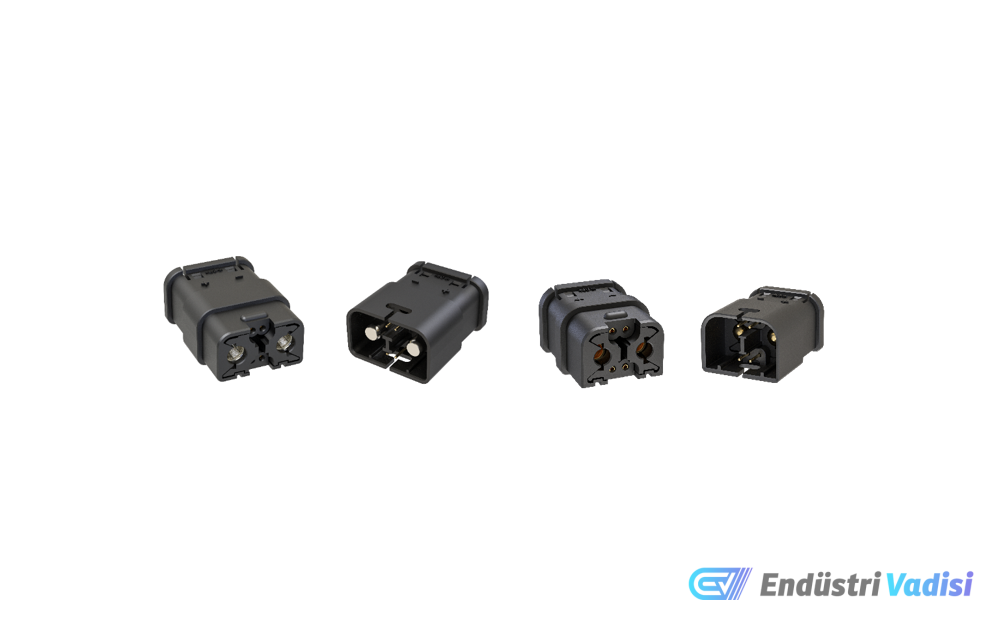

The Han Miniature Power Connector (MPC), developed by HARTING, combines a lightweight design with high current carrying capacity. It is specifically designed for unmanned aerial vehicles, ground vehicles, and mobile and humanoid robots. The Han MPC series includes two models: the Han MPC30 provides up to 30 A/120 VDC, while the Han MPC60 model has a current carrying capacity of up to 60 A/120 VDC.

Both models can accommodate four gold-plated high-speed contacts. These contacts enable data transmission via the DroneCAN protocol, ensuring effective communication between drone control systems and peripherals. Thanks to the critical connection between the battery and the electronic speed controller (ESC), the Han MPC supports the continuous and smooth operation of electric motors.

### Technical Specifications

• Current capacity: 30 A/120 VDC for MPC30, 60 A/120 VDC for MPC60
• High surge current: MPC30, 180 A in 10 seconds; MPC60, approximately 350 A
• Contacts: Gold-plated, high-speed, maximum 4 pins
• Crimp contacts for power transmission: Han-Yellock 4 mm² for MPC30, Han C 10 mm² for MPC60
• Protection class: IP40 (IEC 61529), suitable for internal wiring
• Durability: Vibration and shock resistance according to IEC 61373 standard (category 1B)
• Locking: Passive mechanism, connection confirmation with an audible click
• Usage: Ergonomic design for use with gloves, optional cable holder

### Performance and Durability
The MPC series stands out particularly for its high surge current carrying capacity. These industrial connectors offer high electrical reliability and performance even under harsh conditions. Thanks to their gold and silver-plated surfaces, gas-tight connections are formed, ensuring the long lifespan of the equipment.

### HARTING's Vision for the Future
With the increasing importance of drones in terms of mission and safety, HARTING offers comprehensive and documented solutions that comply with European standards. The manufacturer aims to create a comprehensive product portfolio for drone applications by adding new variants to the MPC series in the medium and long term.

### Key Advantages

• Reliable connection solutions from HARTING, Europe's industry leader
• High electrical reliability with silver and gold-plated crimp contacts
• High current carrying capacity with 30A and 60A options, small footprint
• DroneCAN compatible, signal integrity up to 4 pins
• Detailed technical documentation and standard compliance

### About HARTING
The HARTING Technology Group is one of the world's leading companies in industrial connectivity solutions. With approximately 6,100 employees, it operates in 42 sales companies, 14 production facilities, and 7 R&D centers. Its solutions are used in a wide range of sectors such as transportation, electromobility, automation, mechanical engineering, and renewable energy. In the 2024/25 financial year, it achieved sales revenue of 1.1 billion euros.
