🌊 Stainless Steel Couplings in Aquaculture Automation: Corrosion-Defying Solutions 🐠

[Ahmet Ö.]

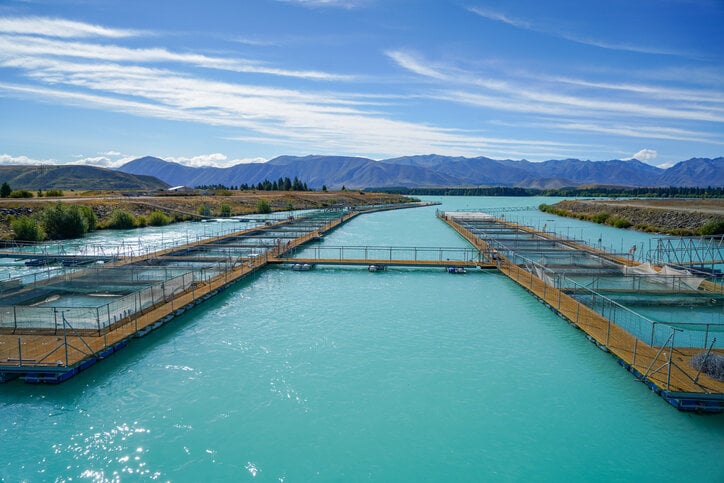

Modern aquaculture facilities are known for their challenging environmental conditions. Saltwater and high humidity pose a serious corrosion threat to equipment. This is precisely where ENEMAC's stainless steel couplings come into play, increasing the durability and performance of automation systems.

─────────────────────────

⚙️ Special Design for Aquaculture: EWC and EWJ Series​

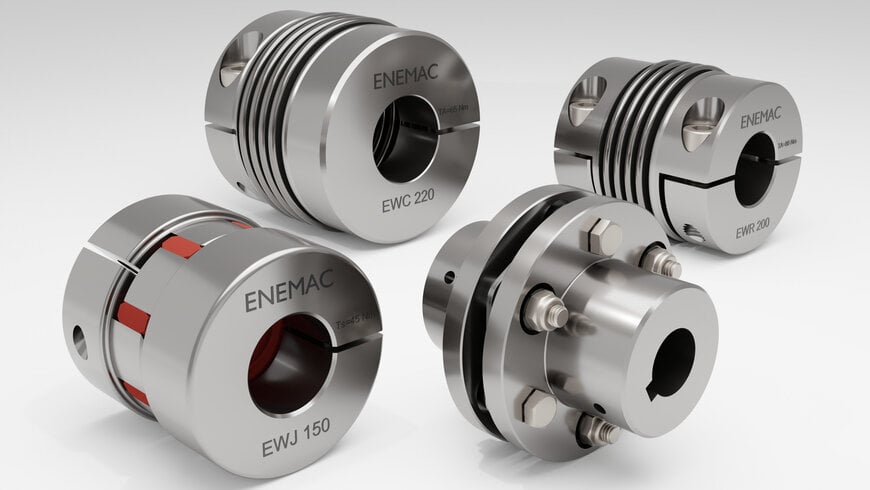

ENEMAC has specifically developed EWC (metal bellows) and EWJ (elastomeric) series stainless steel shaft couplings for the corrosive environments of aquaculture. These couplings provide precise torque transmission and vibration damping in critical applications such as automatic feeding systems, pumps, and processing equipment.

─────────────────────────

⚡ Metal Bellows Couplings for Servo Precision (EWC Series)​

For high-dynamic servo applications, such as automatic dosing and positioning axes, the EWC series offers an ideal solution. These couplings provide angularly synchronized torque transmission and high torsional rigidity thanks to their backlash-free metal bellows.

•
  []Torque Range: 1.5 to 1,000 Nm

  []Rotational Speed: Up to 23,000 rpm

  []Shaft Diameter: 3 to 90 mm



Designed to meet strict hygiene standards in fish processing areas, these couplings feature smooth and easy-to-clean surfaces. Furthermore, they offer radial mounting capability through split clamp hubs, ensuring easy installation and replacement even in confined spaces.

─────────────────────────

🛡️ Elastomeric Couplings for Load Damping (EWJ Series)​

In applications exposed to fluctuating forces and shock loads, such as pump drives, ventilation systems, and screw conveyors, the EWJ series provides critical mechanical isolation. The integrated elastomeric spider dampens operational vibrations and absorbs torque peaks, reducing structural stress on adjacent drive components.

•
  [

• ]Torque Range: 6 to 650 Nm




  []Operating Speed: Up to 29,000 rpm

  []Temperature Range: –30 °C to +120 °C


This design compensates for angular, radial, and axial shaft misalignments while also providing electrical isolation between connected machines.

─────────────────────────

🔬 Material Science and Corrosion Resistance​

In marine and offshore aquaculture engineering, the quality of stainless steel used in drive system components is of great importance. Especially to prevent chloride-induced pitting and crevice corrosion, the correct material selection is critical.

•
  []A2 (AISI 304) Stainless Steel: Offers sufficient oxidation resistance for freshwater systems or standard washdown areas.

  []A4 (AISI 316) Stainless Steel: Absolutely necessary for applications directly exposed to saltwater, as the addition of molybdenum stabilizes the passive chromium oxide layer against aggressive chloride ions.


In elastomeric jaw couplings like the EWJ series, the integrated "spider" component determines the dynamic behavior of the entire drive system. These elastomeric parts, typically molded from polyurethane, are classified by their Shore hardness (e.g., 98 Shore A or 64 Shore D).

•
  []Soft Spider: Provides superior vibration damping and electrical insulation (galvanic isolation), preventing destructive bearing currents generated by Variable Frequency Drives (VFDs).

  []Hard Spider: Offers higher torsional rigidity for precise rotational positioning, at the expense of damping capacity.


─────────────────────────

In conclusion, ENEMAC's stainless steel couplings offer durable, reliable, and high-performance solutions against the challenging conditions in the aquaculture sector, significantly increasing the efficiency and lifespan of automation systems.
