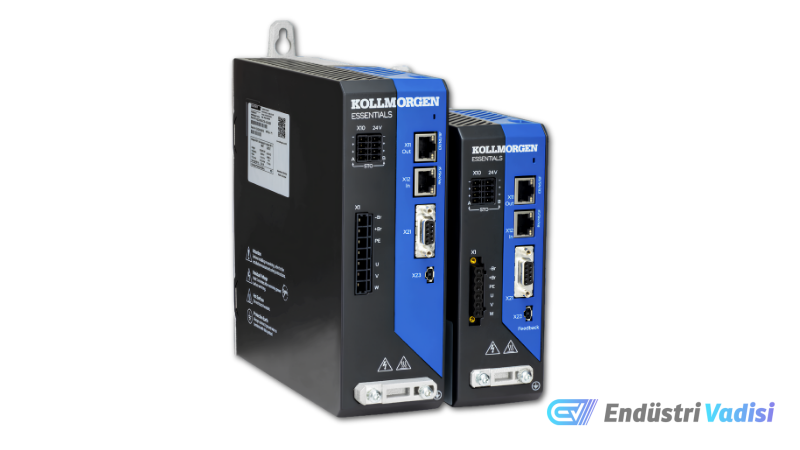

Kollmorgen has announced its new IP69K-rated servo drives, developed for demanding hygienic and washdown environments. These drives combine multi-protocol support, absolute feedback, and cost-effective performance to provide durable motion systems for applications requiring frequent cleaning, such as food processing and packaging.
Kollmorgen has expanded its Essentials Servo Drive (KED) platform for washdown and hygienic environments. These new drives are specifically designed for applications where equipment is frequently exposed to harsh cleaning conditions, such as food processing and packaging.
As part of the update, KED drives support SFD-M absolute feedback by integrating with AKMA aluminum washdown motors and AKMH stainless steel hygienic motors. This combination offers multi-turn positioning, industrial Ethernet support, and integrated safety while keeping system costs and complexity under control.

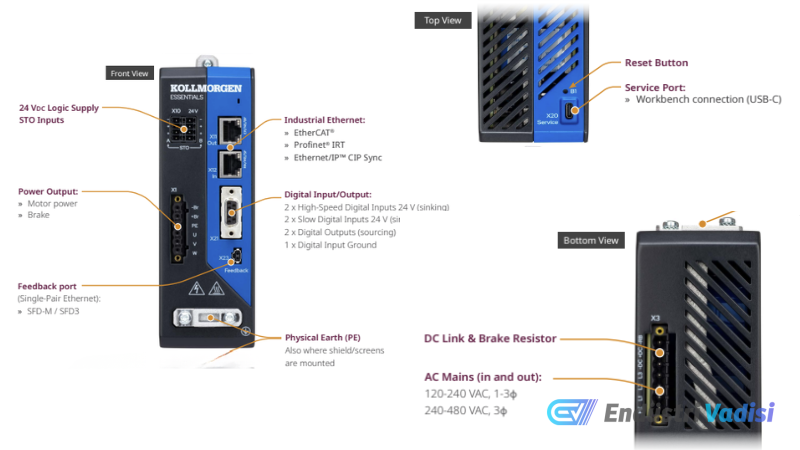

### Kollmorgen Essentials Servo Drive (KED) Features
- High-pressure washdown durability with IP69K protection class
- EtherCAT, EtherNet/IP, and PROFINET support
- Easy integration into different control systems thanks to multi-protocol connectivity
- Quick and easy setup with Kollmorgen WorkBench software
- Multi-axis synchronization and high-speed logging capabilities
- 24-bit absolute positioning with SFD-M (smart absolute feedback device)
- Battery-free encoder usage with energy harvesting technology
- Time savings in automatic drive configuration and parameter entry
- Compatible with AKMA aluminum and AKMH stainless steel motors
The KED platform offers consistent hardware and software features across various motor and drive sizes, providing scalability for a wide range of machine sizes. Thanks to multi-protocol support, it can easily adapt to different networks via the same hardware.
With SFD-M technology, position data is preserved during power cycles using an energy harvesting method, which reduces maintenance needs and provides high-resolution feedback. This technology also shortens commissioning time by reducing the need for manual parameter entry during setup.
The system, paired with AKMA and AKMH motors, is designed for use in environments requiring frequent washdown and hygiene. AKMA features an aluminum casing, while AKMH is made of stainless steel, and both are IP69K certified, making them resistant to high-pressure cleaning and chemical exposure.

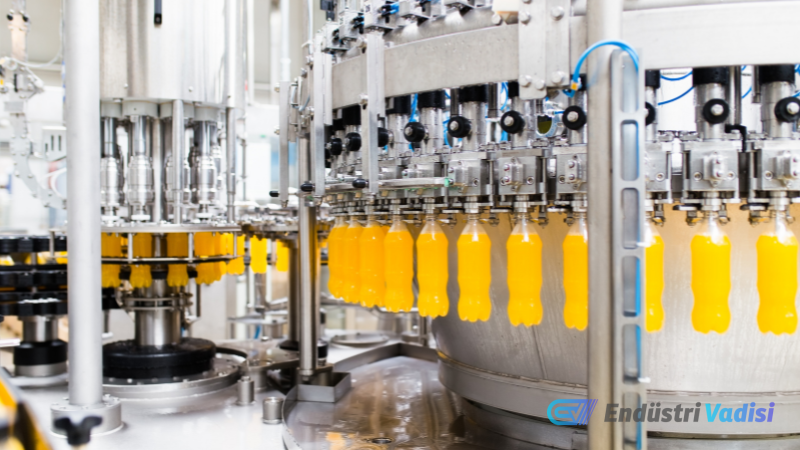

These new servo drives, which offer ideal performance in food and beverage industry applications such as high-speed filling, provide economical and reliable motion control.
The Kollmorgen Essentials Servo Drive series offers an integrated solution for hygienic and washdown environments by combining integrated safety features, absolute feedback, and multi-protocol compatibility. With 1000 V, 32A SNAP IN blocks, it speeds up panel wiring and reduces system preparation time.
This innovative platform promises superior performance and flexibility in demanding operating conditions for Industry 4.0 applications.
