🚀 Revolutionizing Industrial Inspection: 4K Digital Microscope System from Vision Engineering!

[Erkan Teskancan]

✨ Next-Generation Quality Control: EVO Cam AURA​

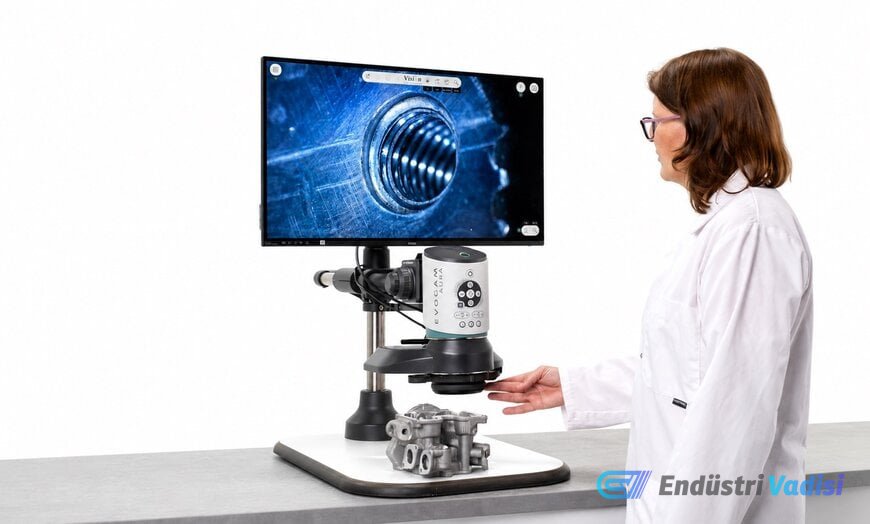

Vision Engineering has introduced EVO Cam AURA, a new 4K digital microscope platform poised to revolutionize industrial inspection and quality control processes. Designed to enhance precision in electronics, automotive, aerospace, and medical device manufacturing, this system elevates previous high-resolution imaging capabilities to true 4K resolution.

🔍 Optical Excellence and Imaging Power​

Thanks to 4K imaging, even the finest details such as hairline cracks, cellular boundaries, and pad geometry on high-density components can be clearly seen. With specialized optics and an optical zoom mechanism, operators can transition from broad overviews to micro-details without changing lenses. Integrated autofocus and focus stacking mechanisms automatically combine multiple focal planes to create sharp images of complex or irregular parts.

💻 Smart Software and Automated Workflow​

At the heart of the system, the AURA software integrates zoom, focus, illumination, image capture, measurement, and reporting into a single interface. Intelligent auto-recognition ensures correct magnification and measurement scaling during operation. The software features an illumination recall function that automatically restores previous ring light settings. Additionally, metadata-based comparison features allow live component images to be matched against a verified golden sample. A dedicated Supervisor Mode secures critical parameters, while customizable presets can be deployed across multiple systems to ensure consistency in high-mix production lines. Built-in productivity tools include pulse, curtain, and synchronized comparison modes, along with pass/fail overlays. Since all annotations and calibrated measurements reside within the same interface, exported images automatically carry relevant metadata and timestamps.

🏭 Industrial Applications and Hardware Configurations​

• Electronics Manufacturing: 4K resolution and focus stacking clarify solder joints on increasingly dense circuit boards.

• Aerospace and Defense: The software embeds metadata into images to create inspection records ready for audit.

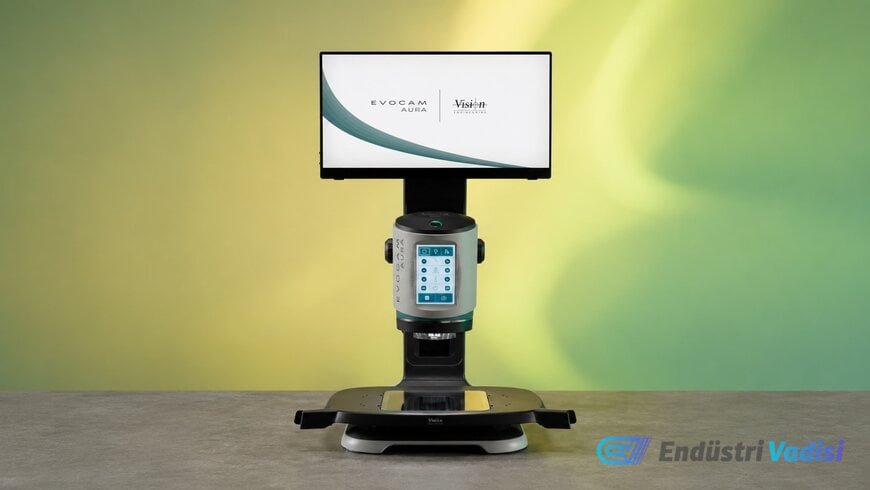

EVO Cam AURA is offered in three hardware configurations: 4K Touch, standard 4K, and keypad-controlled HD. The system operates as a standalone unit without requiring a PC and provides live streaming via Wi-Fi or LAN for network storage and remote inspection. For restricted environments, secure variants are available where all wireless connectivity, Bluetooth, and removable storage are physically disabled.

🗣️ Executive Insight​

Managing Director Sam Crossley stated, "With AURA, we combine the simplicity that users trust with enhanced imaging performance and a fully integrated toolset that meets the evolving needs of manufacturing environments."

💡 Technical Details and Competitive Analysis​

In the industrial optical inspection market, digital platforms compete with established systems such as the Keyence VHX series and Tagarno metrology microscopes. Benchmarking in this sector typically evaluates sensor resolution, depth of field synthesis (focus stacking speed), and standalone software capabilities. While high-end metrology systems often utilize specialized motorized lenses and external PC workstations for advanced 3D surface profiling, platforms in this class focus on ergonomic, continuous on-screen 2D inspection without external computing hardware. The availability of hardware-disabled secure variants addresses specific compliance and air-gap requirements in defense and medical device manufacturing, offering a measurable differentiation parameter in government and regulated procurement cycles compared to standard commercial microscopes.
