## Augmented Reality Operator Guidance Platform Digitizing Assembly Processes
Belgian software provider ARKITE stands out with its Operator Guidance Platform, developed to digitize manual assembly, picking, and quality control processes. This system replaces physical documents with augmented reality (AR) instructions and real-time feedback from sensors. Designed using standard components from Bosch Rexroth's modular workstation systems, the platform offers global applicability in the electronics, aerospace, and automotive sectors, aiming for near-zero errors in complex manual operations.
### AR Projection and Workflow Integration

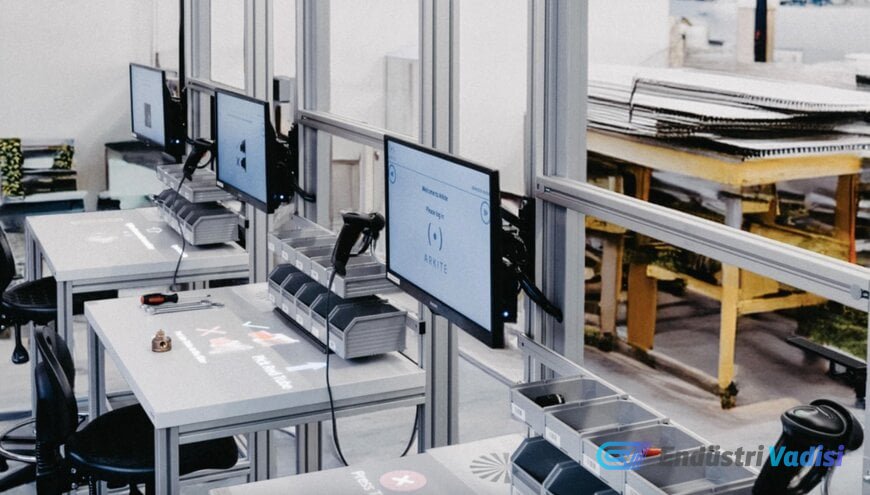

The system uses "pick-to-projection" technology to guide operators through assembly stages. In "Guide" mode, AR instructions are projected directly onto the work surface and relevant material bins, allowing operators to focus on their tasks without needing external screens. Peripherals such as smart tightening systems, press stations, and collaborative robots are synchronized in a single workflow, reducing manual errors by up to 90% compared to documentation.
### Real-Time Validation and Vision-Based Quality Control
The "Validate" mode, on the other hand, instantly checks whether tasks are performed correctly using 3D sensors and special algorithms. For micro-assemblies requiring high precision, high-resolution visual sensors called ARKITE Vision are used. These 3D sensing technologies have reduced labor errors and scrap rates by 80% in over 1,000 applications worldwide, improving First Pass Yield (FPY) rates.
### Modular Structure and System Compatibility

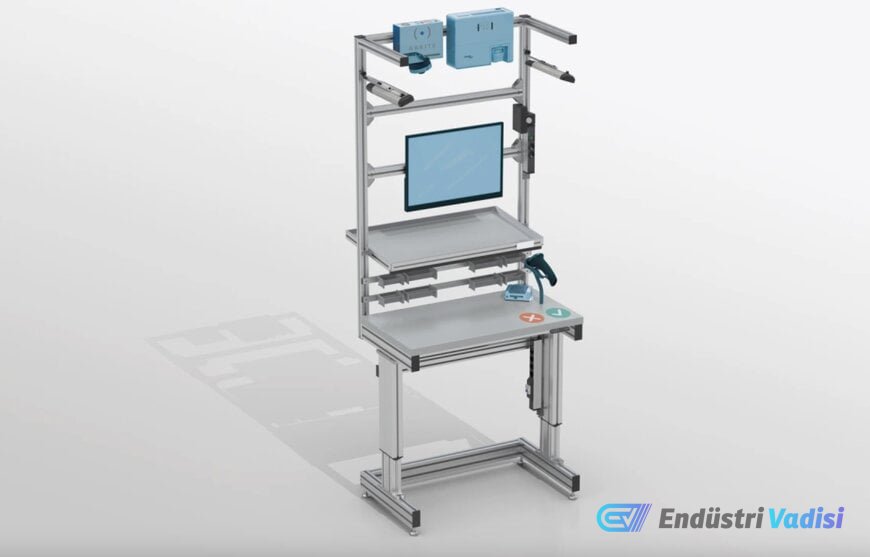

The platform is built on Bosch Rexroth's modular system, which complies with ergonomic and clean production standards. Key technical features include:
- Fast reconfiguration with no-code work instruction loading
- Integration capability with MES and ERP platforms
- Adaptable hardware and software for new and existing production lines
### Training Efficiency and Global Distribution
The Operator Guidance Platform reduces operator training times by up to 50%. The intuitive nature of the AR interface provides continuous on-the-job training. The platform is integrated into the Bosch Rexroth Certified Excellence partner network, providing local technical support and application expertise for regional factories.
