## Specialized Security Camera Module for Cleanroom Environments

Omron has introduced the HVC-P2 B5T-007003 security camera module, capable of detecting operators wearing cleanroom attire. This module offers a solution to the challenges of human detection in semiconductor, pharmaceutical, and food processing automation systems.

### Detection Challenges in Cleanroom Environments

Cleanroom operators wear full protective suits that obscure body contours and thermal signatures. Consequently, standard pose estimation models or thermal and ultrasonic detection technologies may be insufficient for accurately identifying human presence.

The B5T-007003 module combines Omron's compact camera and processing hardware with specially trained algorithms designed to recognize human body features beneath cleanroom garments. The training data set covers various positions, including standing, sitting, crouching, and crawling. This ensures that operators can be detected at every stage, from equipment setup to maintenance tasks.

### Security Integration Upon Human Presence Detection

When the module detects human presence, it sends a signal to the central machine controller. This allows the control system to activate or prioritize safe operating modes when moving machinery approaches.

### Technical Specifications

• Model: HVC-P2 B5T-007003
• Integrated compact camera and processing hardware
• Special algorithms recognizing the human body under cleanroom protective clothing
• Training data: standing, sitting, crouching, and crawling positions
• Two lens options: 50° long-range or 90° wide-angle

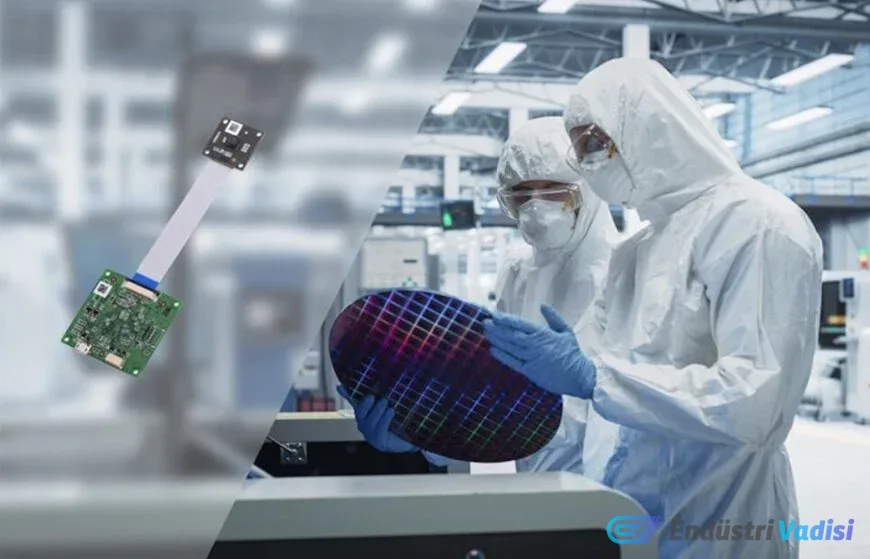

• Camera and processing board connection via flexible printed circuit (FPC)
• Configuration and threshold adjustment via PC using a USB interface
• Development kit: USB drivers, command specifications, evaluation software, and sample code
• Binary detection output and optional raw camera image access

### Hardware Integration and Optical Options

The module offers 50° long-range or 90° wide-angle lens options to optimize the field of view according to machine geometry. Coverage can be increased with vertical downward or upward positioning, or multi-camera placements at oblique angles. The flexible connection cable allows for easy mounting in confined spaces or special enclosures.

### Configuration and Development Support

Detection modes and signal thresholds can be adjusted via a graphical user interface (GUI) on a PC. The development kit includes all necessary software support for efficient use in integrated machines.

Omron's module provides a human detection solution specifically for production environments requiring high hygiene, offering appropriate size, flexible integration, and advanced detection capabilities.
