Next-Generation Microcontrollers from Toshiba: A Revolution in Industrial Automation!​

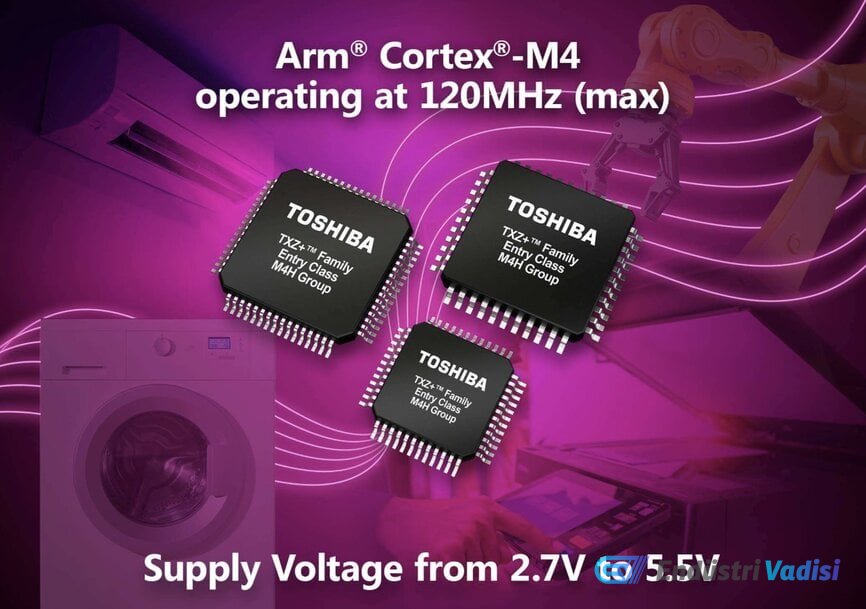

Toshiba has commenced mass production of new microcontrollers featuring Arm Cortex-M4 processors, designed to manage complex control logic in factory and consumer equipment. The M4H group, launched by Toshiba Electronics Europe, includes models TMPM4H4FYUG, TMPM4H2FYDUG, and TMPM4H1FYUG. These chips have been specifically developed to support system control functions such as interface processing and timing management, thereby managing electromechanical processes in industrial automation infrastructure and consumer device manufacturing.

Architecture and Power Specifications​

These microcontrollers integrate an Arm Cortex-M4 core equipped with a floating-point unit (FPU) and a memory protection unit (MPU). Operating at clock frequencies up to 120 MHz, the hardware supports 256 kilobytes of program flash memory and 18 kilobytes of parity-checked RAM. Designed to be compatible with equipment powered by 5 volts, these units operate within a supply voltage range of 2.7 V to 5.5 V. The integrated 10 MHz high-speed oscillator provides an accuracy of ±1%, allowing hardware engineers to reduce the number of external components required on the printed circuit board.

Peripheral Integration and Motor Control​

To facilitate communication and sensor integration in industrial networks, the architecture includes a 12-bit analog-to-digital converter (ADC), standard timers, and direct memory access (DMA). Communication interfaces include universal asynchronous receiver-transmitter (UART), serial peripheral interface (SPI), and inter-integrated circuit interface (I2C). For electromechanical applications such as multifunction printers, factory robots, air conditioners, and washing machines, the chips feature an advanced programmable motor driver (A-PMD) specifically configured to control brushless DC motors. Furthermore, built-in self-diagnosis functions ensure compliance with functional safety requirements in continuous operation environments.

Hardware Packaging and Ecosystem Support​

The microcontroller series offers three Low Profile Quad Flat Package (LQFP) options to meet varying input/output constraints, physical space limitations, and mounting requirements. Configurations include 64-pin (10 mm × 10 mm, 0.5 mm pitch), 48-pin (7 mm × 7 mm, 0.5 mm pitch), and 44-pin (10 mm × 10 mm, 0.8 mm pitch) packages. To support system evaluation and software integration, the hardware is provided with product documentation, sample software, and Common Microcontroller Software Interface Standard (CMSIS)-compliant drivers. Evaluation boards and development environments are distributed in coordination with Arm ecosystem partners to support the transition from prototype evaluation to mass production.

Market Position and Competition​

In the embedded systems market, the integration of 5-volt supply capabilities in 32-bit Arm Cortex-M4 architectures targets environments with high electromagnetic interference, such as industrial motor drives and large home appliances. The Toshiba M4H series directly competes with other 5-volt tolerant, motor control-focused microcontrollers like the NXP Kinetis KE1xF series and the Renesas RA4T1 group.

Benchmarking in this hardware category focuses on maximum clock frequency, the resolution of integrated analog-to-digital converters (ADCs), and hardware-accelerated motor control algorithms. While some competitors, such as the STMicroelectronics STM32G4 series, operate at higher frequencies (up to 170 MHz) and offer 16-bit ADCs, the Toshiba M4H balances its 120 MHz processing speed with the Advanced Programmable Motor Driver (A-PMD). This specialized peripheral hardware offloads brushless DC (BLDC) motor commutation tasks from the central processor. Additionally, standard benchmarking for these devices requires compliance with IEC 60730 Class B safety standards, evaluating the effectiveness of integrated memory parity checks and self-diagnosis routines necessary to prevent critical failures in automated machinery.
