The Brain of Mobile Robots: Meet the New Motion Controller!​

Oriental Motor has developed a new motion control unit for autonomous mobile robots (AMRs) and automated guided vehicles (AGVs), which have become indispensable in industrial automation. This specialized unit is designed to facilitate vehicle motion integration and position feedback.

⚙️ Integrated Kinematics and Software Architecture​

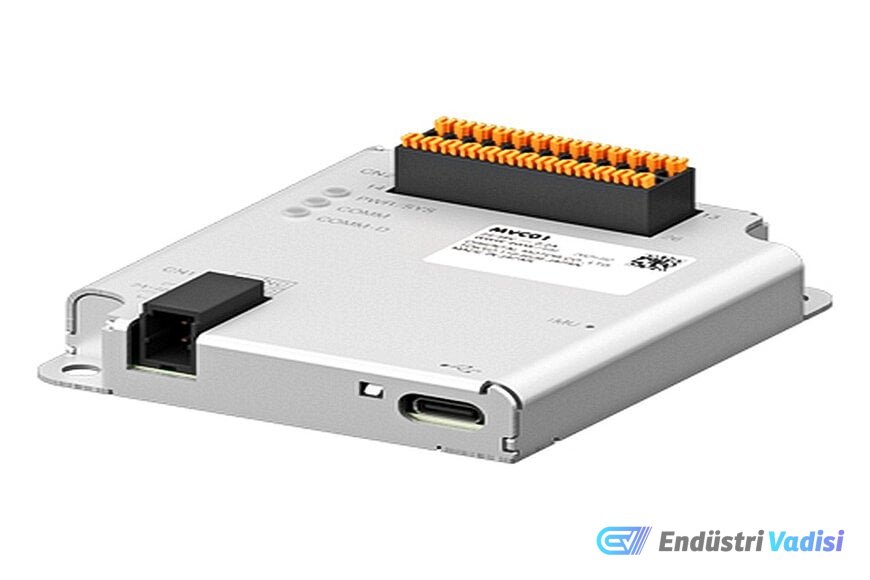

While traditional robot development involves main processors handling low-level driving algorithms and trajectory calculations, the new MVC01 mobile robot controller lightens this load. It directly receives high-level velocity commands from the host computer and calculates multi-axis wheel velocities internally. This results in:

• Reduced processing load on high-level systems.

• Fewer software nodes.

• Simplified communication traffic.

• Shorter commissioning times.


System configuration, real-time telemetry, and parameter settings are managed via dedicated software. This software allows for adjusting motor parameters, calibrating mechanical dimensions, and evaluating diagnostic data.

🧭 Sensor Fusion and Drive Integration​

Reliable dead reckoning is critical for accurate positioning in warehouse environments. The MVC01 integrates the motion control loop with an internal Inertial Measurement Unit (IMU). It combines gyroscope data and encoder feedback from wheel actuators to provide filtered gyroscope odometry. This allows for the detection of wheel slips, transmitting more precise position data to navigation systems.

The controller directly interfaces with Oriental Motor's BLV Series R Type brushless DC motors and drivers. This combination offers high power density in a compact and lightweight structure, making it an ideal solution for autonomous chassis with limited internal space and carrying capacity.

💡 Technical Details and Competitive Advantages​

These specialized mobile robot motion controllers act as a bridge between high-level navigation computers and motor drivers. Units like the MVC01 embed differential drive algorithms at the hardware level, eliminating external software delays. Furthermore, thanks to internal IMU fusion, they prevent error accumulation caused by wheel slip, providing real-time slip compensation. Its modular architecture reduces thermal concentration in compact AGV chassis while offering a synchronized powertrain system via CAN or serial communication.
