🚀 High-Precision Strain Wave Gear Actuators in Industrial Automation: Revolutionary Solutions from Nabtesco!

[Alper Aktaş]

⚙️ End to Integration Challenges!​

Nabtesco offers compact, plug-and-play mechatronic drive systems to solve engineering integration problems. These systems are specifically designed for precision manufacturing and automated guided vehicles (AGVs).

🌟 Plug-and-Play Mechatronic Systems​

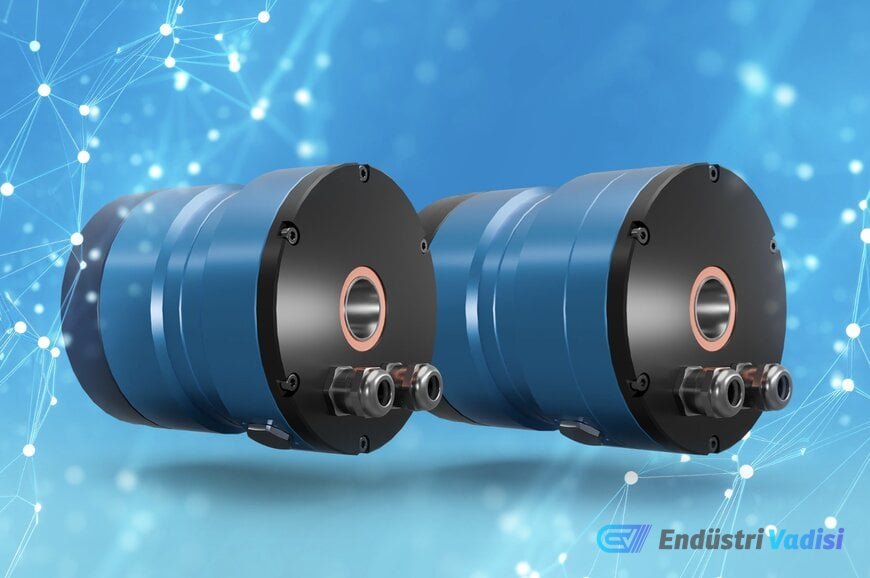

Nabtesco has launched its fully assembled, backlash-free strain wave gear actuator series to facilitate component integration in the mechanical engineering and robotic automation sectors. These plug-and-play mechatronic systems combine gear units, motors, sensors, and bearings in a single compact structure. They specifically target areas requiring high precision, such as robotics, medical technology, and mobility.

🛠️ Reducing Integration Complexity in Drive Systems​

In traditional drive systems, the gear unit, motor, sensors, bearings, and interfaces must be precisely matched and adapted to the specific application. This process often requires significant engineering resources and extends time-to-market. The new actuators solve this problem by integrating pre-coordinated components into a single module. By offering a fully assembled drive system, it eliminates the need for separate housings and external seals, thereby reducing overall design complexity and integration efforts for engineers.

🔍 Technical Specifications: Strain Wave and Cycloidal Actuators​

• Designed for applications requiring compact design, high precision, and zero backlash.

• High power density assemblies consist of a gear set, bearings, housing, an electric motor with encoder, and an optional brake mechanism.

• Available in various sizes, gear ratios, and torque ranges (including hollow shaft configurations) to meet diverse engineering requirements.

• Supports the adaptation of various sensor types, allowing for the integration of torque, temperature, or position sensors.

• Resistant to dust and low-pressure water jets with full corrosion protection and an IP65 protection rating.

• Cycloidal gear variants are also produced for demanding load scenarios and higher torque requirements.


🏭 Automotive-Compliant Production and Traceability​

The backlash-free strain wave gear actuators are manufactured at Ovalo GmbH's facility in Limburg (Lahn), Germany. Production complies with strict automotive standards certified to IATF 16949. This standardized production framework supports high-volume manufacturing, rapid development cycles, and full component traceability. The manufacturing methodology scales efficiently from single-piece flow configurations to mass production environments, maintaining quality and safety protocols.

🎯 Application Areas and Mechatronic Use Cases​

These integrated actuator solutions are used in many technical sectors where high positioning accuracy and limited installation space intersect. Typical application areas include robotic and collaborative robot (cobot) joints, conveying and positioning systems, automated guided vehicles (AGVs), and steer-by-wire solutions for the mobility sector. The combination of comprehensive mechatronic drive system expertise spanning mechanics, electronics, and digitalization enables manufacturers to source coordinated technologies from a single source, shortening development cycles for automation hardware.

💡 Additional Information​

In the high-precision mechatronic drive market, Nabtesco's strain wave actuators directly compete with established benchmark systems such as the Harmonic Drive SHA-CG series and the Wittenstein cyber dynamic line. These systems are evaluated based on objective criteria such as torque density (Nm/kg), torsional stiffness, and near-zero backlash values (typically ≤15 arc seconds) required for cobot joint repeatability. While competitors like Harmonic Drive offer similar plug-and-play hollow shaft actuators that combine a gear set, servo motor, and high-resolution encoder in a single package, Nabtesco differentiates its products with local IP65 environmental protection and extended internal sensor capabilities for torque, temperature, and position monitoring. Across the industry, this shift towards fully integrated mechatronic systems provides a measurable engineering advantage by reducing the overall bill of materials, eliminating the need for secondary sealing mechanisms, and minimizing design complexity for automation hardware.
