🚀 Fanless Edge System for Industrial AI: Avalue EPC-WCL Review 💡

[Elif Özaksu]

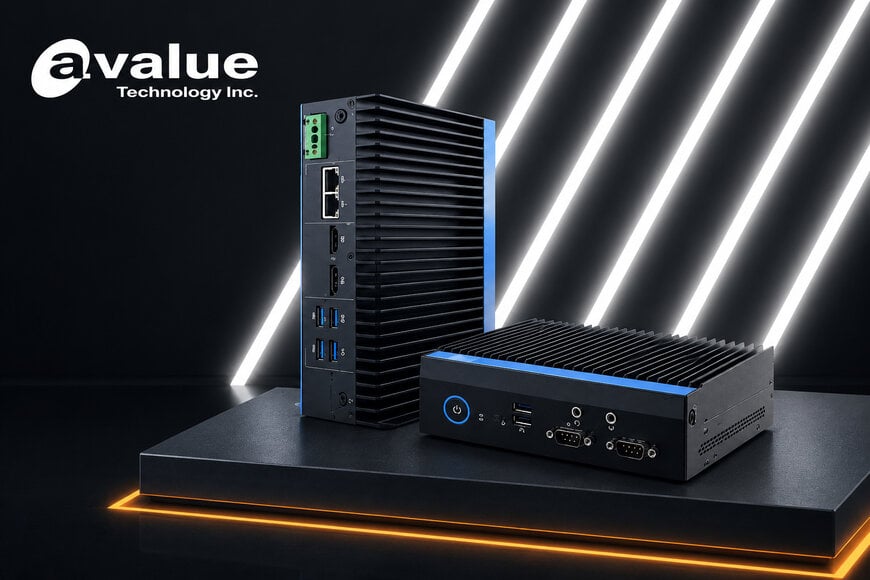

A groundbreaking development is underway in industrial automation and smart factory solutions! Avalue Technology has introduced the EPC-WCL, a fanless and powerful embedded system designed for edge AI applications. This innovative platform aims to elevate efficiency and automation to the next level across many sectors, from manufacturing to retail.

─────────────────────────

⚙️ The New Face of Industrial AI​

Avalue Technology's next-generation EPC-WCL system has been specifically developed for AI applications in industrial environments. Powered by Intel Core Series 3 processors, this platform combines CPU, GPU, and NPU resources to deliver high-performance AI inference capabilities at the edge. This allows data processing to be performed directly on the production floor, without relying on the cloud.

─────────────────────────

⚡ Real-Time AI at the Edge​

With the proliferation of AI in manufacturing and operational environments, the need for low-latency local data processing is also increasing. The EPC-WCL is designed to meet this need. The system is powered by Intel Core Series 3 processors featuring Intel Xe3 graphics architecture and an integrated NPU5. According to Avalue, the combined operation of the CPU, GPU, and NPU can deliver up to 40 TOPS of AI performance. This capacity is ideal for critical applications such as automated optical inspection (AOI), speech recognition, machine vision, and smart retail systems.

─────────────────────────

🏭 Long-Life Industrial Hardware​

At the heart of the EPC-WCL is Avalue's ECM-WCL 3.5-inch industrial motherboard. Its fanless design ensures uninterrupted operation even in harsh industrial conditions and confined spaces. The platform supports up to 48 GB of DDR5-6400 memory. M.2 expansion interfaces allow for the integration of NVMe SSD storage, Wi-Fi 7, WWAN, and GNSS modules, providing high-speed data transfer and wireless connectivity.

For network connectivity, there are dual Intel 2.5GbE Ethernet ports, as well as USB and serial COM interfaces. On the security front, TPM 2.0 technology is used for device authentication and protection in connected industrial environments.

─────────────────────────

📊 Multi-Display Support and HMI Integration​

The EPC-WCL supports various display outputs such as HDMI, DisplayPort, USB Type-C DisplayPort, and LVDS/eDP, enabling it to drive three independent displays simultaneously. This feature provides a significant advantage for human-machine interface (HMI) systems, digital signage, and AI-based visualization applications. Process data, camera feeds, and operator interfaces can be displayed concurrently on different screens.

─────────────────────────

🔌 Single Cable Convenience: USB Type-C​

One of the platform's prominent features is its USB Type-C interface. This interface provides video output, data transfer, and up to 45W Power Delivery over a single cable. Combining power, communication, and display connectivity into one cable reduces cable clutter and simplifies installation. This approach is particularly critical for autonomous mobile robots (AMRs), self-service kiosks, and mobile edge AI devices.

─────────────────────────

🔒 Local AI Processing for Low Latency and Data Privacy​

The ability to process AI workloads locally provides real-time responses without the need for constant cloud connectivity. This approach reduces network latency and helps organizations meet data privacy and security requirements. In applications such as industrial quality control, automated image analysis, speech-enabled systems, and interactive retail platforms, local AI processing increases responsiveness and ensures operational continuity even when network connectivity is limited.

─────────────────────────

🔬 Technical Depth and Market Position​

The EPC-WCL is carving out a significant niche in the compact industrial edge AI systems market. Compared to traditional industrial PCs, systems with dedicated NPUs can execute AI inference workloads more efficiently by offloading neural network processing from the CPU and GPU. The stated AI performance of up to 40 TOPS places the EPC-WCL within the performance range of existing Intel Core Series 3 edge computing platforms. Key benchmarking criteria in this market segment include AI processing capacity in TOPS, memory capacity, network bandwidth, display support, security features, wireless connectivity options, and support for modern communication standards like Wi-Fi 7.

Avalue's EPC-WCL stands out as a powerful and flexible solution that illuminates the future of industrial AI. This system is poised to play a significant role in industrial transformation by addressing the next-generation needs of smart factories and automation.
