## Banner RSio Remote Safety I/O Block and Easy Configuration with Studio 5000

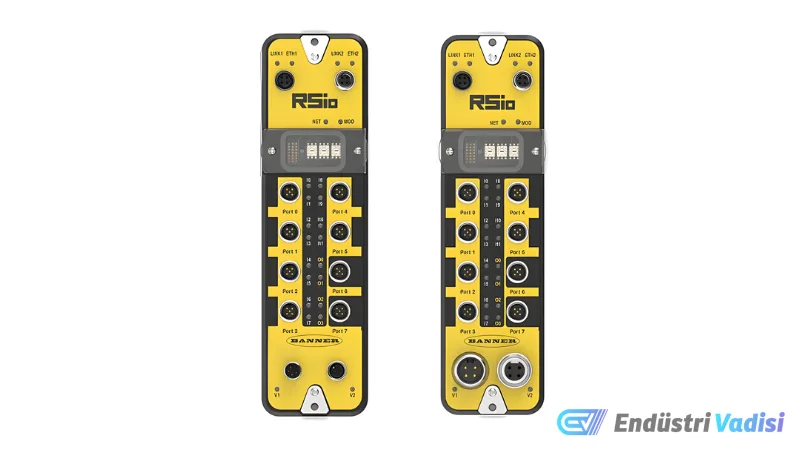

Banner Engineering has introduced the new RSio remote safety input/output (I/O) block, which can be easily configured with Rockwell Automation's Studio 5000 software. This modular device comes in a robust IP67-rated housing designed to withstand harsh industrial conditions.
The RSio offers six independent channels, each supporting up to 32 devices, allowing a total of 192 devices to be connected. Flexible system design is possible thanks to hybrid ports for both standard and safety-rated devices. Safety equipment such as emergency stop buttons, light curtains, pull cords, and alarms can be easily integrated.
### Banner RSio Technical Specifications
- Maximum 6 I/O channels
- Each channel supports up to 32 devices
- Total capacity of 192 devices
- IP67 protection rating, durable and protected against water and dust
- Hybrid ports for use with both standard and safety devices
- Easy configuration via Add-On Profile EDS file with Rockwell Studio 5000
- 10 A pass-through with mini power option
- 16 A pass-through with M12 L-Code power option
- M12 A-Code I/O ports
### Flexibility and Applications
RSio modules can be daisy-chained according to the system design with different connection schemes such as ring, star, or mixed topology. This offers easy integration and expansion with existing hardware. Devices can be mounted directly on the machine and accessed remotely.
### Easy Installation and Use

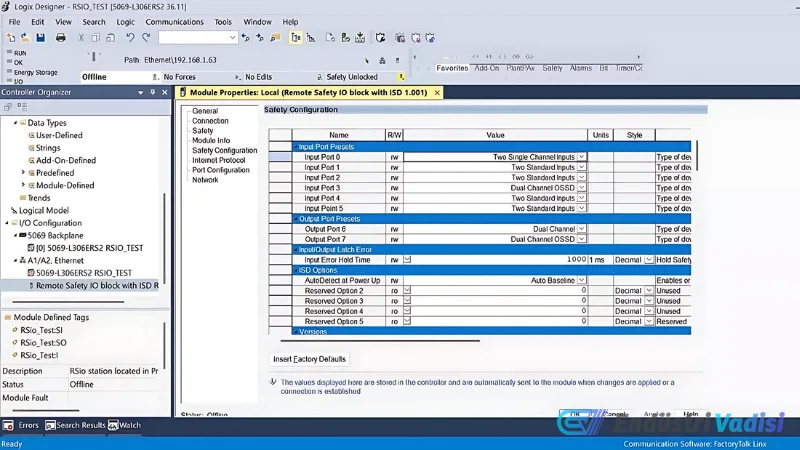

Configuration via Studio 5000 software is quick and practical "without a learning curve." Users can use predefined settings or customize them according to their needs. This feature saves time and labor in the installation and management of safety systems.
The Banner RSio stands out as a modular and powerful safety I/O solution for industrial automation projects, compatible with both new installations and existing systems.
