Antaira's Industrial PoE++ Injector with 95W Power and 10GbE Speed

[Erkan Teskancan]

## Industrial PoE++ Injector from Antaira with 95W Power and 10GbE Speed

Antaira Technologies has introduced its new 95-watt PoE++ injector, designed to simultaneously meet high bandwidth and power demands in industrial environments. This device can deliver high power over a single cable with 10GbE multi-gigabit Ethernet connectivity.

### High Speed and Power Combined

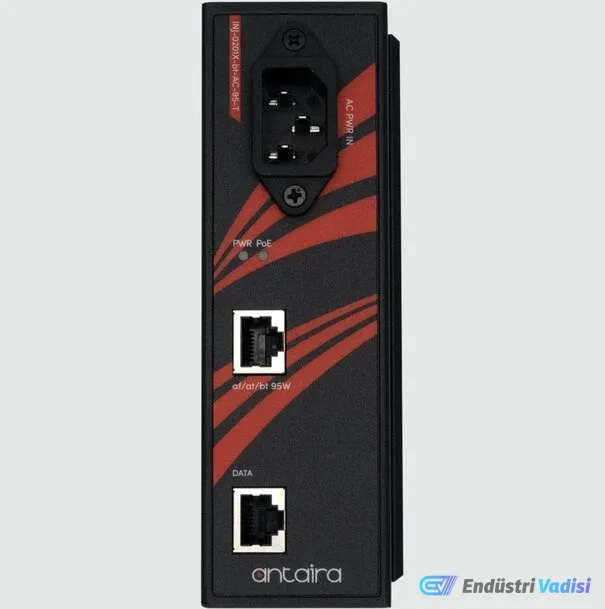

The INJ-0201X-bt-AC-95-T model supports 10/100/1000/2.5G/5G/10GBase-T over a single RJ45 copper interface while providing 95 watts of power in accordance with the IEEE 802.3bt PoE++ standard. This enables high speed and power delivery to 5GbE and 10GbE machine vision cameras, high-resolution PTZ IP security cameras, and Wi-Fi 6 and Wi-Fi 7 access points.

As 4K, 8K video streams, motorized optics, and edge computing needs increase in industrial automation and security systems, such powerful data and energy combinations are becoming increasingly common.

### Easy Installation with Direct AC Power Input
Unlike most industrial PoE injectors that use external DC power supplies, the INJ-0201X-bt-AC-95-T accepts direct AC power input from 85-264 VAC via an IEC C14 connector. This allows direct connection to standard mains electricity, reducing the number of equipment in control cabinets and simplifying application and maintenance.

### Industrial Use in Wide Temperature Range
The device is designed to operate between -40°C and 75°C, making it suitable for outdoor enclosures and unconditioned industrial areas. The IP40-rated metal housing provides resistance to dust and shock, while offering both DIN rail and wall-mount options.

### INJ-0201X-bt-AC-95-T Technical Specifications

• 95 watts power output with IEEE 802.3bt PoE++ support
• Multi-gigabit RJ45 Ethernet (10/100/1000/2.5G/5G/10GBase-T) over a single port
• 85-264 VAC AC power input with IEC C14 connector
• Operating temperature: -40°C to 75°C
• IP40-rated metal casing
• DIN rail and wall mount options
• 5-year manufacturer's warranty

### Application Areas and Advantages
The product is preferred in industrial environments with high data speed and power requirements, such as machine vision systems in automated production lines, high-resolution PTZ IP camera security systems, Wi-Fi 6 and Wi-Fi 7 wireless networks, smart building management, and edge computing points.

By combining IEEE 802.3bt power with 10GbE multi-gigabit Ethernet, this injector offers an ideal solution for infrastructures that exceed the limitations of older PoE and Gigabit Ethernet technologies.
