⚙️ Modular Load-Sensing Spool Valves for Compact Hydraulic Systems: A New Generation Solution from Danfoss 🚀

[Ahmet Ö.]

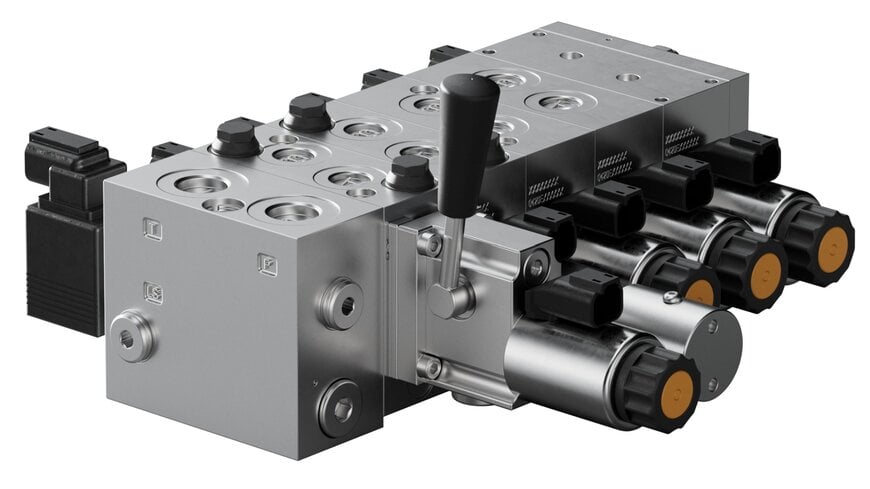

Great news for engineers facing space constraints in mobile machinery and agricultural equipment! Danfoss Power Solutions has introduced CVG 8, a pre-compensated hydraulic platform that provides scalable flow control even in limited spaces. This innovative solution eliminates the challenge of integrating modular flow control into industrial automation and mobile equipment ecosystems.

─────────────────────────

💡 System Modularity and Design Architecture​

The CVG 8 platform features a modular design, allowing engineers to customize inlet modules, basic sections, end plates, and actuators according to application requirements. This architectural approach enables integration with existing hydraulic integrated circuits (HIC) and larger proportional valve sections. Thus, flow and system pressure can be precisely adjusted for each machine function. Thanks to standardized interface plates and spool configurations, the need for machine adaptation is reduced, and the hydraulic system architecture is simplified.

─────────────────────────

📏 Physical Footprint and Technical Specifications​

In applications where installation space is limited, reducing the physical dimensions of hydraulic components is a critical engineering requirement. The basic module of the CVG 8 valve is 30% smaller than previous versions (e.g., the PVB16 module). This increases flexibility in machine layout. Furthermore, the integration of compact load-sensing relief valves provides a 12% weight reduction compared to older systems in a standard three-section configuration. The valve supports a maximum working port flow of 40 liters/minute and a maximum pressure of 350 bar.

─────────────────────────

🕹️ Control Mechanisms and Application Ecosystem​

The platform provides open-loop spool position control using analog current mechanisms. CAN (Controller Area Network) bus integration is available via the CAN 2 Current (C2C) microcontroller. Supporting up to eight separate working sections per valve assembly, the system also incorporates manual override protocols for operational redundancy. This combination of digital control compatibility and physical scalability makes the technology ideal for aerial work platforms, small cranes, reach mowers and balers, sprayers, and agricultural equipment such as harvesting machines. According to Jonas Lauersen, Global Product Portfolio Manager at Danfoss Power Solutions, the load-sensing architecture is designed for full compatibility with existing proportional valve systems, creating a control platform that can scale as machine hydraulic requirements evolve.

─────────────────────────

🔬 Competitive Analysis and Technical Depth​

In the sub-50 liters/minute load-sensing directional control valve market, this platform falls into the same technical category as architectures like the Bosch Rexroth EDG and HAWE Hydraulik PSL series. While HAWE PSL typically utilizes a seated valve design optimized for zero-leakage and high-pressure holding applications, Danfoss's spool architecture prioritizes precise proportional flow control and hysteresis reduction for dynamic mobile equipment. Compared to the Bosch Rexroth EDG, which targets compact mobile machinery, the CVG 8 emphasizes mechanical cross-compatibility with heavier-duty proportional valve sections. This allows hydraulic engineers to mix low-flow and high-flow working sections on a single manifold assembly, simplifying hydraulic routing in complex equipment setups.

─────────────────────────

The Danfoss CVG 8 offers a powerful solution for engineers seeking flexibility, efficiency, and scalability in compact hydraulic systems. With its advanced modular structure and technical specifications, it is ready to meet the future needs of mobile machinery.
