⚡ Innovative MIPI Interface Cables for Embedded Vision 🚀

[Semih Asil]

In industrial automation and quality control systems, precise timing and integration are paramount. Vision Components offers a groundbreaking solution for this need: an integrated hardware solution that simplifies external triggering and lighting synchronization.

─────────────────────────

💡 Synchronization Power in a Single Cable​

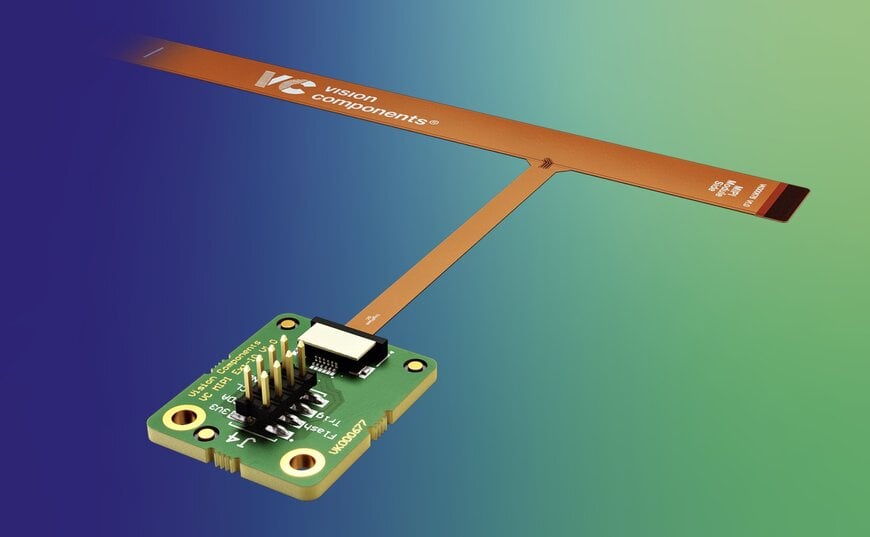

Embedded vision systems often require additional interface cards for external triggers and lighting sources. However, Vision Components is changing this. The new MIPI CSI-2 cable features an integrated connector board for direct trigger input and flash output. This allows for hardware-level synchronization without the need for additional circuitry. Especially in high-speed production applications, microsecond-accurate timing between flash illumination and sensor exposure is critical for freezing motion and preventing image blur.

─────────────────────────

⚙️ Flexible Configuration and Processor Compatibility​

This integrated trigger cable is manufactured in a length of 200 millimeters and directly interfaces with processor boards operating on the MIPI CSI-2 standard. It expands the existing portfolio of FPC (Flexible Printed Circuit) transmission lines in 60, 100, 200, and 250 millimeter sizes. For specific physical constraints, custom cabling configurations are also available with 15, 22, or 24-pin arrangements over two or four data lanes. These structural variants allow system architects to route high-frequency signals through confined mechanical spaces while maintaining data integrity between the sensor node and the main processing unit.

─────────────────────────

📊 Data Transmission Over Long Distances: SerDes Architectures​

The standard MIPI CSI-2 specification limits trace lengths due to signal degradation and electromagnetic interference at high data rates. For applications requiring greater physical separation between the imaging sensor and the logic board, micro-coaxial cabling and SerDes (Serializer/Deserializer) protocols are used. These extended interfaces maintain uncompressed, high-bandwidth video transmission over distances up to 10 meters. The resulting cable infrastructure works within a unified ecosystem, providing electrical and logical compatibility with over 50 different camera modules from the manufacturer.

─────────────────────────

🔬 A New Era in Embedded Vision​

In the embedded vision industry, the transmission of MIPI CSI-2 signals over flexible printed circuits is typically limited to distances under 300 millimeters due to signal attenuation. Vision Components' integrated solution eliminates the need for separate GPIO (General Purpose Input/Output) adapter boards or carrier boards to manage external lighting and hardware trigger signals. Integrating the I/O output directly into the FPC assembly reduces the overall physical footprint and minimizes connection points, thereby reducing the risk of mechanical failure in vibrating industrial environments. For distances up to 10 meters, SerDes architectures using protocols like Texas Instruments' FPD-Link III or Analog Devices' GMSL2 convert parallel MIPI data into a single high-speed serial stream over coaxial infrastructure, creating standard long-range topologies for robotics and vehicle sensing systems.
