⚙️ Industrial Metrology Software and Automation in Control Workflows 🚀

[Süeda Asil]

In the world of manufacturing, quality control processes are evolving from reactive to proactive. Hexagon, as a pioneer in this transformation, offers a real-time analysis solution that modernizes dimensional reporting. So, how does this innovation breathe new life into industrial metrology?

─────────────────────────

💡 PC-DMIS FUSION: Next-Generation Architecture in Data Processing​

Hexagon's Stationary Metrology division has introduced PC-DMIS FUSION, an integrated software platform designed to automate geometric data processing and statistical process control (SPC). This software architecture unifies the collection of information from measurement equipment on the production floor, transforming quality control protocols into predictable workflows.

─────────────────────────

⚡ IIoT Connectivity and Real-Time Analysis Architecture​

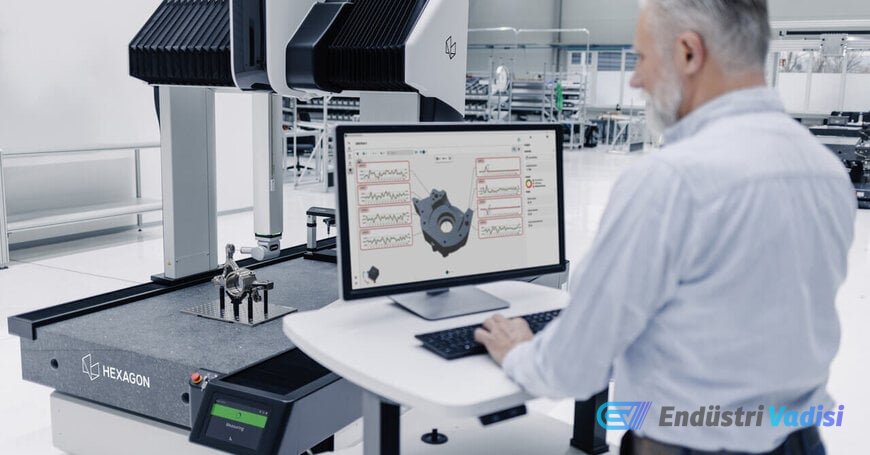

This software solution eliminates bottlenecks caused by fragmented metrological data by directly connecting to a wide range of inspection equipment. By natively interfacing with Hexagon's fully digital and connected coordinate measuring machine MAESTRO, it establishes an automated IIoT (Industrial Internet of Things) ecosystem. While MAESTRO transmits raw dimensional data in real-time, the software's analysis engine performs SPC calculations and manages report generation. This technical approach supports virtual metrology and model-based manufacturing by mathematically linking measured points to original 3D CAD models. Continuous trend analysis enables immediate detection of production deviations, triggering automatic alerts when there is a geometric deviation from nominal tolerances.

─────────────────────────

📊 Optimization of Production Workflows and Integration Criteria​

The integration of this solution eliminates manual and repetitive tasks in compiling dimensional data, reducing cycle times between inspection and the correction of machine parameters. Designed for the production floor environment, the software centralizes quality management without adding complexity to the existing network infrastructure. Operators access a complete measurement history through an interactive graphical user interface that directly translates complex physical variables into actionable performance indicators. This increased visibility makes it possible to stabilize machining and assembly processes on a large scale, maximizing the overall yield of compliant parts while minimizing scrap rates within the supply chain.

─────────────────────────

🔬 Competitive Analysis and Market Positioning​

In the industrial metrology software and SPC analysis market, this integrated platform positions itself against standard solutions such as Mitutoyo MeasurLink or Zeiss's Calypso software suite. An objective analysis of the software features highlights clear distinctions in terms of IIoT integration level and data flow management. While competing architectures often require third-party import modules or intermediate databases to consolidate measurement files from heterogeneous machines, the Hexagon system interfaces directly with the core of the equipment driver. However, the maximum optimization of the predictive ecosystem and automated real-time SPC analysis requires native compatibility with proprietary MAESTRO hardware, which may limit configuration autonomy in highly decentralized machine shops that only use third-party sensors.

─────────────────────────

PC-DMIS FUSION has the potential to end data fragmentation in industrial metrology, making production processes smarter, faster, and more efficient. This integrated approach offers a significant clue as to how quality control will be shaped in the factories of the future.
