## Mechanical Switch with Standardized M12 Connector from Schurter

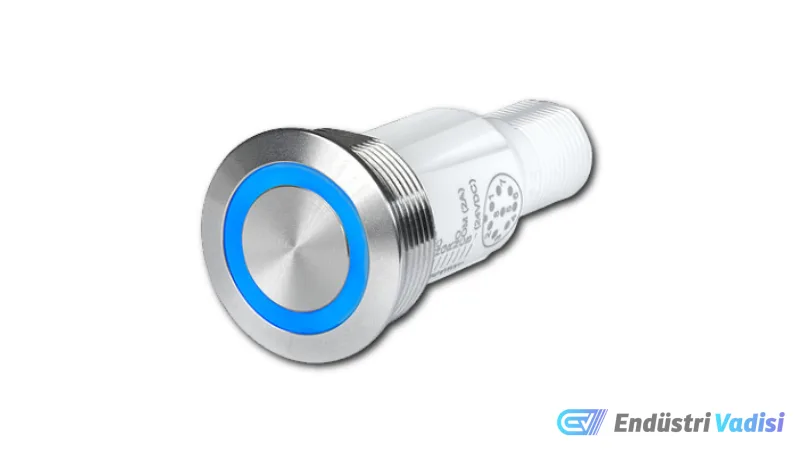

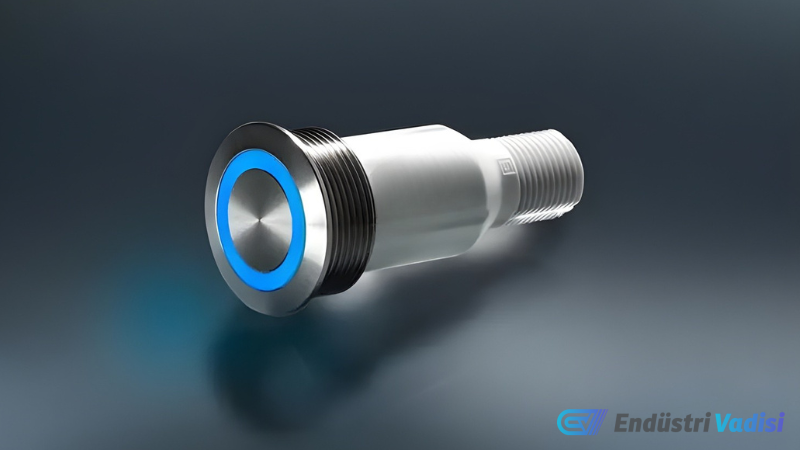

Schurter introduces its new MSM II mechanical switch with an integrated M12 (8-pin) connector for ease of installation and visibility of machine status.

Mechanical switches are widely used in machine controls, control panels, and operator interfaces. While the operating principle of a switch is simple, wiring and integration can add extra time and complexity, especially in distributed systems. The integrated standard M12 connector directly addresses these challenges, speeding up assembly.

### Features of the MSM II M12 Switch

• Fast and easy installation thanks to the integrated M12 (8-pin) connector
• Reduces cable clutter, minimizing the risk of errors
• Provides mechanical durability with a stainless steel housing
• Design resistant to shock and vibration
• Stainless steel or ceramic actuator options
• Momentary (MO) operating stroke
• Torsion protection for positioning during installation
• Electrical operating voltages: between 30 VDC (0.1 A micro switch) and 30 VAC/VDC (2 A micro switch)
• Switch currents range from 0.1 A to 2 A, with gold-plated contacts rated for 100 mA available for low-current applications
• Visually indicates machine status with colors via integrated RGB illumination

### Industrial Use and Advantages

The MSM II M12 switch is designed for use in demanding industrial environments. Shock and vibration resistance are critical in situations where machines are in constant motion. The stainless steel housing provides protection against mechanical stress and environmental conditions.

RGB illumination instantly conveys machine status to operators; for example, green can indicate active, red off, and orange a fault condition. This feature allows the switch to be used as both a control and a signaling element.

The modular design and standardized M12 connection scheme simplify system integration and allow for easy integration into automation architectures.

The Schurter MSM II M12 is an ideal choice for industrial automation and machine engineering applications that prioritize quick installation, durability, and visual status indication.
