Kollmorgen’s New Motion Solutions Focus on Performance and Safety

[Erkan Teskancan]

Kollmorgen is expanding its motion solutions with the new AKME servo motor series, developed for use in hazardous environments. Additionally, it offers significant improvements in functional safety for linear motors and axes with the SafeMotion Monitor 3.0 software update.

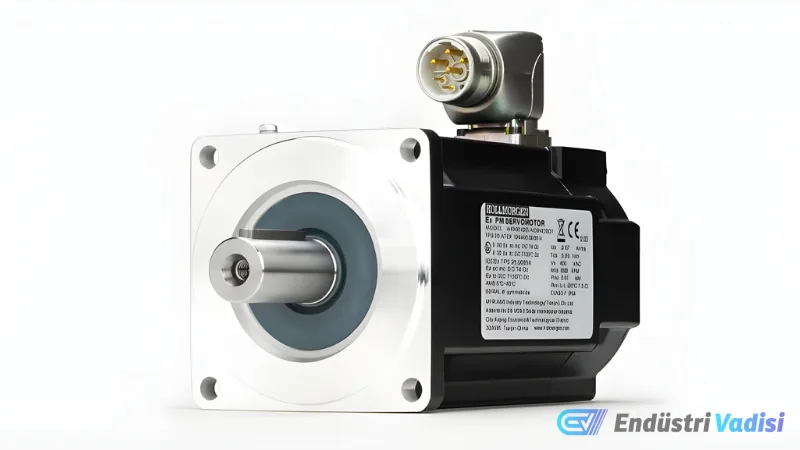

### AKME Servo Motor Series
AKME servo motors are ATEX and IECEx certified for use in hazardous areas such as gas Zone 2 and dust Zone 22. These certifications are critical for safe operation in environments with flammable and explosive vapors. Designed to prevent vapor ingress into the motor and without an open fan housing, these motors do not cause ignition due to overheating.

### Technical Specifications

• Certifications: ATEX, IECEx
• Applications: Gas Zone 2, Dust Zone 22
• Standard Frame Sizes: IEC 2-7
• Maximum Speed: 5000 rpm
• Power Supply: 48 VDC, 75 VDC, 120 VAC, 240 VAC, 400 VAC
• Compatibility: AKD, AKD2G, and Kollmorgen Essentials servo drives
• Feedback Options: Resolver, SFD-M, Hiperface, and other common modes

### SafeMotion Monitor 3.0 Software Update

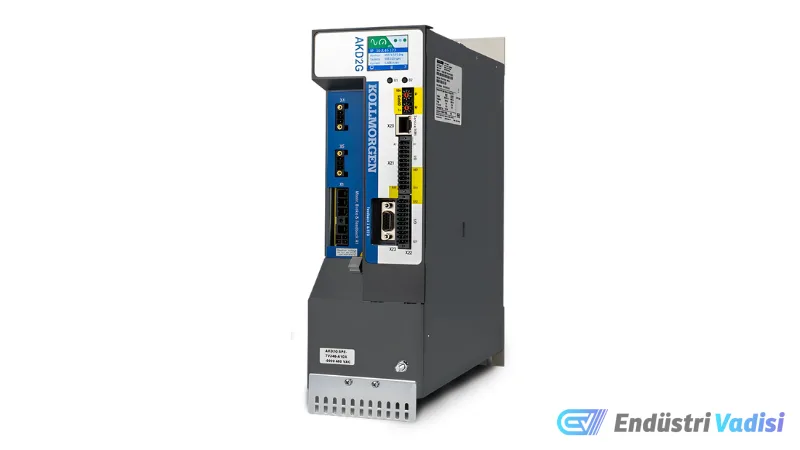

SafeMotion Monitor (SMM) 3.0 firmware has been prepared for AKD2G servo drives and 2G Motion Control Systems. This update supports the EnDat 2.2 protocol, providing more advanced error detection, high-speed data transfer, and enhanced diagnostic tools for bidirectional rotary encoders. The safety level is maintained in accordance with SIL 3 standards, and programming has been updated to these standards.

### Applications
AKME servo motors will be widely used, especially in the chemical, petrochemical, and refinery sectors. High safety and regulatory compliance are required in these sectors due to the presence of flammable and explosive vapors. Additionally, the AKME series is expected to be preferred in food production, grain processing, pharmaceutical manufacturing, paint booths, and dust processing facilities where dust explosion is a risk.

### Conclusion
Kollmorgen's AKME motor series and SMM 3.0 software update enhance performance while elevating safety in industrial applications operating in hazardous environments. These developments offer significant advantages for machine manufacturers and automation systems.
